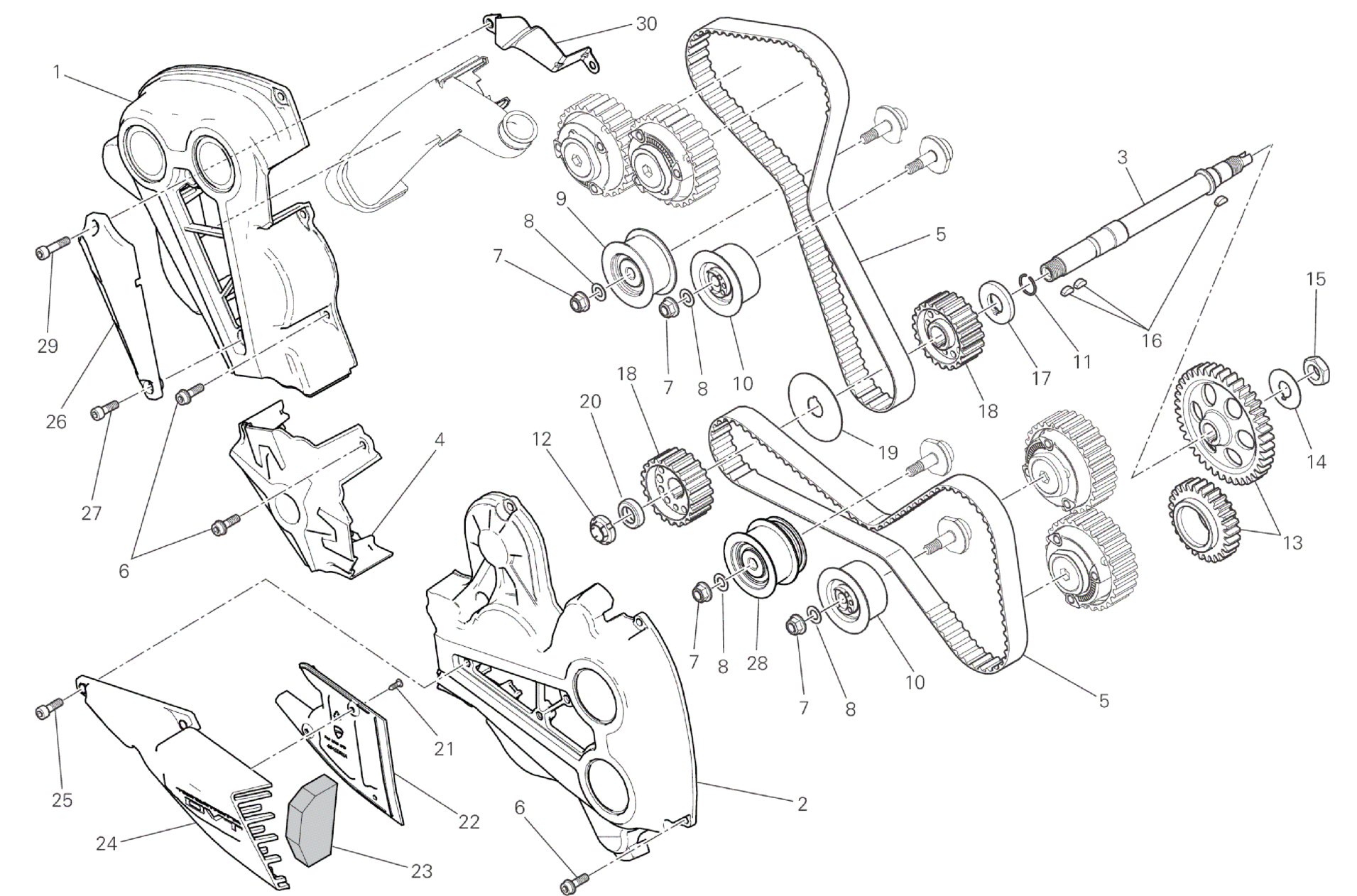

| 1 |
24511611B
|
VERTICAL BELT OUTER COVER
|
27/11/2015 |
MOD:XDIAVEL |
XDIAVEL |
€
70.61
|
|
|
| 2 |
24511631A
|
HORIZONTAL BELT EXTERNAL COVER
|
15/07/2015 |
MOD:XDIAVEL |
XDIAVEL |
€
70.61
|
|
|
| 3 |
14710941A
|
LAYSHAFT TIMING
|
01/03/2014 |
|
|
€
175.41
|
|
|
| 4 |
24531581AB
|
CENTRAL EXTERNAL COVER
|
01/09/2015 |
|
XDIAVEL |
€
32.12
|
|
|
| 5 |
73740341B
|
TIMING DRIVE TOOTHED BELT
|
31/03/2015 |
|
|
€
54.05
|
|
|
| 6 |
77140663CD
|
SCREW
|
23/01/2015 |
|
|
€
0.93
|
|
|
| 7 |
74940081A
|
NUT
|
25/03/2013 |
|
|
€
1.96
|
|
|
| 8 |
85310021A
|
WASHER, SPRING
|
25/03/2013 |
|
|
€
0.93
|
|
|
| 9 |
45120272A
|
TENSIONER TIMING BELT FIXED
|
25/03/2013 |
|
|
€
80.70
|
|
|
| 10 |
45120291A
|
COMPLETE MOVABLE TENSIONER ROLLER
|
25/03/2013 |
|
|
€
89.49
|
|
|
| 11 |
88210031A
|
SNAP RING
|
25/03/2013 |
|
|
€
1.96
|
|
|
| 12 |
70350062A
|
ELASTIC-STOP RING NUT
|
25/03/2013 |
|
|
€
7.43
|
|
|
| 13 |
17122391A
|
TIMING GEARS SET
|
31/03/2015 |
|
|
€
288.85
|
|
|
| 14 |
85110131A
|
WASHER, LOCK
|
25/03/2013 |
|
|
€
0.93
|
|
|
| 15 |
75011601A
|
NUT M14X1X7
|
25/03/2013 |
|
|
€
2.99
|
|
|
| 16 |
68010131A
|
KEY, WOODRUFF 4X5X10
|
25/03/2013 |
|
|
€
0.93
|
|
|
| 17 |
71611281A
|
SPACER
|
25/03/2013 |
|
|
€
7.86
|
|
|
| 18 |
25510104B
|
PULLEY, TIMING BELT
|
25/03/2013 |
|
|
€
22.73
|
|
|
| 19 |
85610623A
|
WASHER, BELT PULLEY
|
25/03/2013 |
|
|
€
2.99
|
|
|
| 20 |
71610722A
|
SPACER
|
25/03/2013 |
|
|
€
8.82
|
|
|
| 21 |
77211451A
|
SCREW
|
03/03/2015 |
|
|
€
0.93
|
|
|
| 22 |
48411331A
|
AIR MANIFOLD INTERNAL R.H. HORIZONTAL
|
26/01/2015 |
|
|
€
5.43
|
|
|
| 23 |
42710221A
|
FILTER, AIR
|
26/01/2015 |
|
|
€
8.65
|
|
|
| 24 |
48411321A
|
AIR MANIFOLD EXTERNAL R.H. HORIZONTAL
|
26/01/2015 |
|
|
€
36.13
|
|
|
| 25 |
77113801A
|
SCREW
|
14/09/2015 |
|
|
€
0.93
|
|
|
| 26 |
48411341A
|
AIR MANIFOLD EXTERNAL R.H. VERTICAL
|
27/11/2015 |
|
|
€
24.09
|
|
|
| 27 |
77116721A
|
SCREW
|
27/11/2015 |
|
|
€
1.96
|
|
|
| 28 |
45120301A
|
TENSIONER TIMING BELT FIXED POMPA ACQUA
|
23/01/2015 |
|
|
€
70.61
|
|
|
| 29 |
77150693BC
|
SCREW
|
01/12/2015 |
|
|
€
1.96
|
|
|
| 30 |
82718381A
|
PLATE HOSE, BLOW-BY
|
01/12/2015 |
|
|
€
9.63
|
|
|
