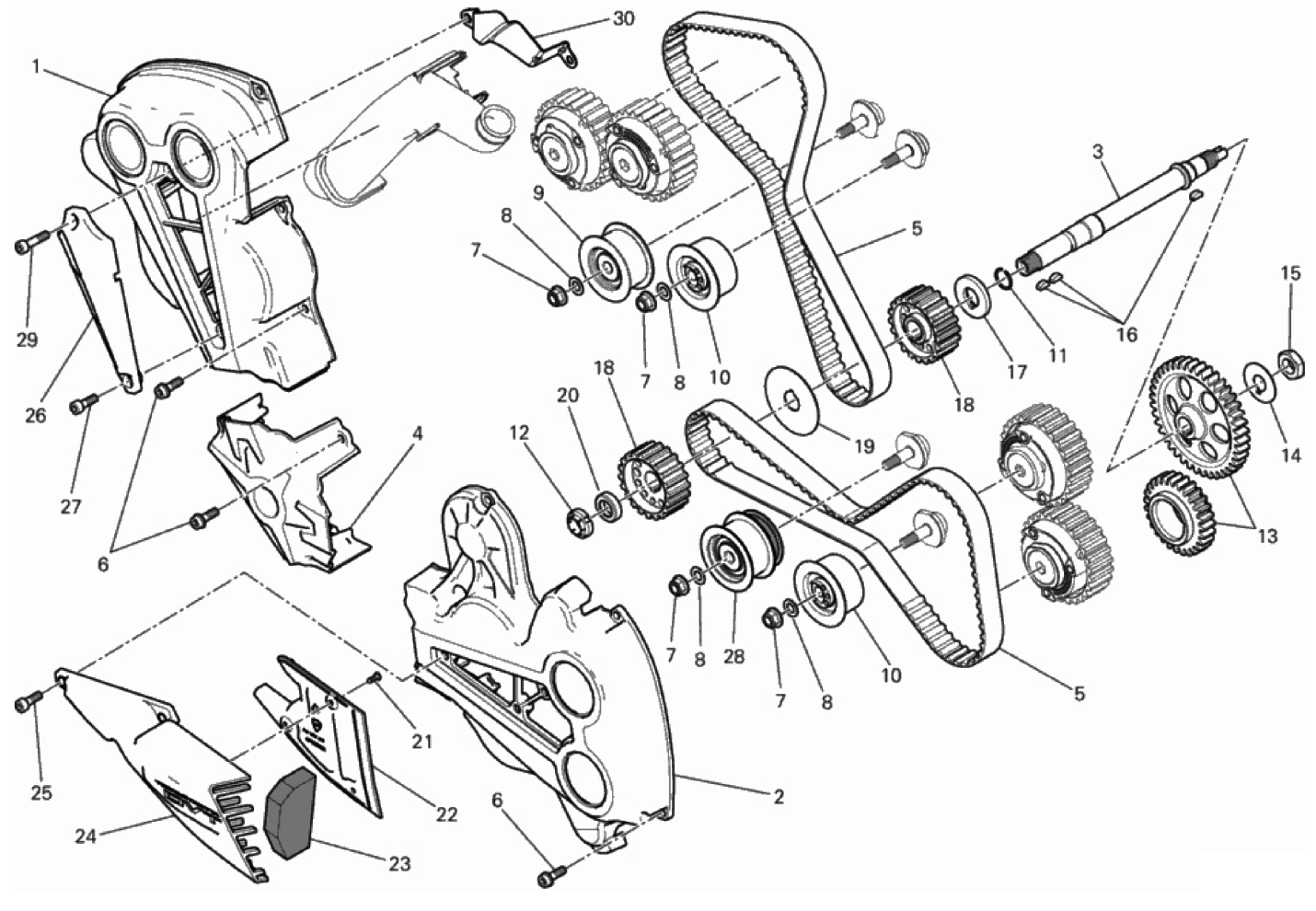

1 |
24511611B
|
VERTICAL BELT OUTER COVER
|
€
68.55
|
|
|
2 |
24511631A
|
HORIZONTAL BELT EXTERNAL COVER
|
€
68.55
|
|
|
3 |
14710941A
|
LAYSHAFT TIMING
|
€
170.30
|
|
|
4 |
24531581AB
|
CENTRAL EXTERNAL COVER
|
€
31.18
|
|
|
5 |
73740341A
|
TIMING DRIVE TOOTHED BELT
|
€
42.36
|
|
|
6 |
77140663CD
|
SCREW
|
€
0.90
|
|
|
7 |
74940081A
|
NUT
|
€
1.90
|
|
|
8 |
85310021A
|
WASHER, SPRING
|
€
0.90
|
|
|
9 |
45120272A
|
TENSIONER TIMING BELT FIXED
|
€
78.35
|
|
|
10 |
45120291A
|
COMPLETE MOVABLE TENSIONER ROLLER
|
€
86.88
|
|
|
11 |
88210031A
|
SNAP RING
|
€
1.90
|
|
|
12 |
70350062A
|
ELASTIC-STOP RING NUT
|
€
7.21
|
|
|
13 |
17122391A
|
TIMING GEARS SET
|
€
280.44
|
|
|
14 |
85110131A
|
WASHER, LOCK
|
€
0.90
|
|
|
15 |
75011601A
|
NUT M14X1X7
|
€
2.90
|
|
|
16 |
68010131A
|
KEY, WOODRUFF 4X5X10
|
€
0.90
|
|
|
17 |
71611281A
|
SPACER
|
€
7.63
|
|
|
18 |
25510104B
|
PULLEY, TIMING BELT
|
€
22.07
|
|
|
19 |
85610623A
|
WASHER, BELT PULLEY
|
€
2.90
|
|
|
20 |
71610722A
|
SPACER
|
€
8.56
|
|
|
21 |
77211451A
|
SCREW
|
€
0.90
|
|
|
22 |
48411331A
|
AIR MANIFOLD INTERNAL R.H. HORIZONTAL
|
€
5.27
|
|
|
23 |
42710221A
|
FILTER, AIR
|
€
8.40
|
|
|
24 |
48411321A
|
AIR MANIFOLD EXTERNAL R.H. HORIZONTAL
|
€
35.08
|
|
|
25 |
77113801A
|
SCREW
|
€
0.90
|
|
|
26 |
48411341A
|
AIR MANIFOLD EXTERNAL R.H. VERTICAL
|
€
23.39
|
|
|
27 |
77116721A
|
SCREW
|
€
1.90
|
|
|
28 |
45120301A
|
TENSIONER TIMING BELT FIXED POMPA ACQUA
|
€
68.55
|
|
|
29 |
77150693BC
|
SCREW
|
€
1.90
|
|
|
30 |
82718381A
|
PLATE HOSE, BLOW-BY
|
€
9.35
|
|
|
