Diavel XDIAVEL NERA
Diavel 1260 S
Diavel XDIAVEL NERA
Diavel XDIAVEL S

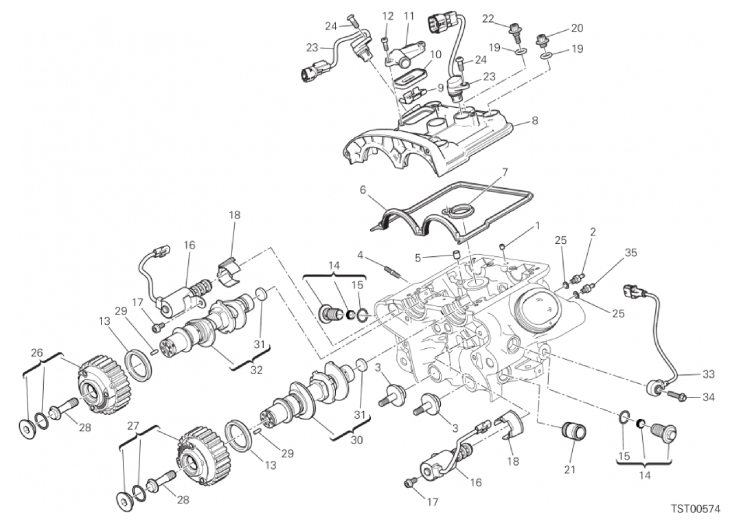

013 VERTICAL CYLINDER HEAD - TIMING (11/18)
018 BATTERY HOLDER (1/7)
018 BATTERY HOLDER (2/7)
020 HEADLIGHT (3/7)
18A WIRING HARNESS (4/7)
20A INSTRUMENT PANEL (5/7)
27A PLATE HOLDER (6/7)
27A PLATE HOLDER (7/7)
002 GEAR CHANGE MECHANISM (1/18)
003 GEAR BOX (2/18)
004 CLUTCH (3/18)
005 CLUTCH COVER (4/18)
006 CONNECTING RODS (5/18)
008 TIMING SYSTEM (6/18)
009 OIL PUMP - FILTER (7/18)
010 HALF-CRANKCASES PAIR (8/18)
011 GENERATOR COVER (9/18)
012 ELECTRIC STARTING AND IGNITION (10/18)
013 VERTICAL CYLINDER HEAD - TIMING (11/18)
014 VERTICAL HEAD (12/18)
015 HORIZONTAL HEAD (13/18)
07A WATER PUMP (14/18)
07B CYLINDERS - PISTONS (KOENIG) (15/18)
07C CYLINDERS - PISTONS (ASSO WERKE) (16/18)
10A HALF-CRANKCASES PAIR (17/18)
13A HORIZONTAL HEAD - TIMING SYSTEM (18/18)
016 OIL COOLER (1/28)
017 THROTTLE BODY (2/28)
019 EXHAUST SYSTEM (3/28)
021 HANDLEBAR (4/28)
022 FRAME (5/28)
022 FRAME (6/28)
023 CLUTCH MASTER CYLINDER (7/28)
024 FRONT BRAKE SYSTEM (8/28)
025 REAR BRAKE SYSTEM (9/28)
026 WHEELS (10/28)
027 REAR FRAME COMP. (11/28)
028 REAR SHOCK ABSORBER (12/28)
029 INTAKE (13/28)
030 WATER COOLER (14/28)
031 COOLING CIRCUIT (15/28)
032 FUEL TANK (16/28)
033 SEAT (17/28)
034 FAIRING (18/28)
035 HOT AIR PIPE CANISTER (19/28)
036 ACCESSORIES (20/28)
037 WARNING LABELS (21/28)
21A FRONT FORK (22/28)
22A SIDE STAND (23/28)
24A BRAKING SYSTEM ABS (24/28)
26A HUB, REAR WHEEL (25/28)
27B FOOTRESTS, LEFT (26/28)
27C FOOTRESTS, RIGHT (27/28)
28A SWING ARM (28/28)
01A WORKSHOP SERVICE TOOLS, ENGINE (1/3)
01B WORKSHOP SERVICE TOOLS, FRAME (2/3)
01C CHECK INTRUMENT DDS (3/3)
Register here!
Log in to your account
0
0.00
Log in to your account
0
0.00
-
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
21
22
23
23
24
24
25
25
26
27
28
28
29
29
30
31
31
32
33
34
35
Productos
* All prices are excl. VAT
Value in currencies other than in Euro (€) are only an indication.
American dollar ($)
Argentine Peso ($)
Australian Dollar ($)
British pounds (£)
Cambodia Riel (៛)
Canadian dollar ($)
Chilean Peso ($)
China Yuan Renminbi (¥)
Colombia Peso ($)
Croatian Kuna (kn)
Czech Koruna (Kč)
Danish Krone (kr)
Euro (€)
Gibraltar Pound (£)
Hong Kong Dollar ($)
Hungarian Forint (Ft)
India Rupee (₹)
Indonesian Rupiah (Rp)
Japanese Yen (¥)
Kuwaiti Dinar (kwd)
Malaysian Ringgit (RM)
Mexican Peso ($)
New Israeli Sheqel (₪)
New Taiwan Dollar (NT$)
New Zealand Dollar ($)
North Korean Won (₩)
Norwegian Krone (kr)
Paraguayan Guarani (Gs)
Peruvian Sol (S/.)
Philippine Peso (₱)
Polish Zloty (zł)
Russian Ruble (₽)
Singapore Dollar ($)
South African Rand (R)
South Korean Won (₩)
Swedish Krona (kr )
Swiss Franc (CHF)
Thai Baht (฿)
Turkisch Lira (₺)
Uruguayan Peso ($U)
No.
Código
Nombre
Pos
Precio
No.
Código
Nombre
pos
Precio
1
86010061A
PIN
1
€
2.90
2
81413341A
UNION
2
€
7.86
3
45110462A
MOVABLE TENSIONER ROLLER PIN
3
€
18.93
4
76640191A
STUD BOLT
4
€
0.90
5
71113742A
BUSH
5
€
5.98
6
78811331B
VALVE COVER GASKET EXTERNAL
6
€
7.12
7
78811341B
GASKET
7
€
1.90
8
24714811EJ
COVER CYLINDER HEAD, VERTICAL
8
€
148.92
9
82716351A
PLATE
9
€
5.14
10
81140012B
VALVE
10
€
13.14
11
24714171A
COVER VERTICAL
11
€
15.67
12
77350403B
SCREW
12
€
0.90
13
93042181A
SEAL RING
13
€
18.27
14
87321421B
PLUG
14
€
28.47
15
88640851A
O-RING
15
€
0.90
16
45040023A
VALVE
16
€
70.77
17
77140648CA
SCREW
17
€
1.90
18
24511481A
INSERT
18
€
3.90
19
88642621A
O-RING
19
€
0.90
20
74810491B
NUT, SPECIAL
20
€
3.90
21
66810501B
NIPPLE HOSE
21
€
7.71
22
77919061B
SCREW, SPECIAL
22
€
1.90
23
55243341A
DETECTOR
23
€
58.12
24
77550218CJ
SCREW
24
€
0.90
25
85250231A
GASKET
25
€
0.90
26
17740061A
TIMING BELT PULLEY, DRIVEN (DVT)
26
€
231.68
27
17740051A
TIMING BELT PULLEY, DRIVEN (DVT)
27
€
231.68
28
77918271A
SCREW, SPECIAL
28
€
6.87
29
86050131A
PIN
29
€
0.90
30
14825031E
VERTICAL INTAKE CAMSHAFT
30
€
605.38
31
87310051A
PLUG 18 MM
31
€
1.90
32
14825041E
VERTICAL EXHAUST CAMSHAFT
32
€
605.38
33
55243181A
DETECTOR
33
€
145.34
34
77244661A
SCREW
34
€
3.90
35
81411113B
NIPPLE, HOSE
35
€
6.90
