Products

* All prices are excl. VAT
Value in currencies other than in Euro (€) are only an indication.

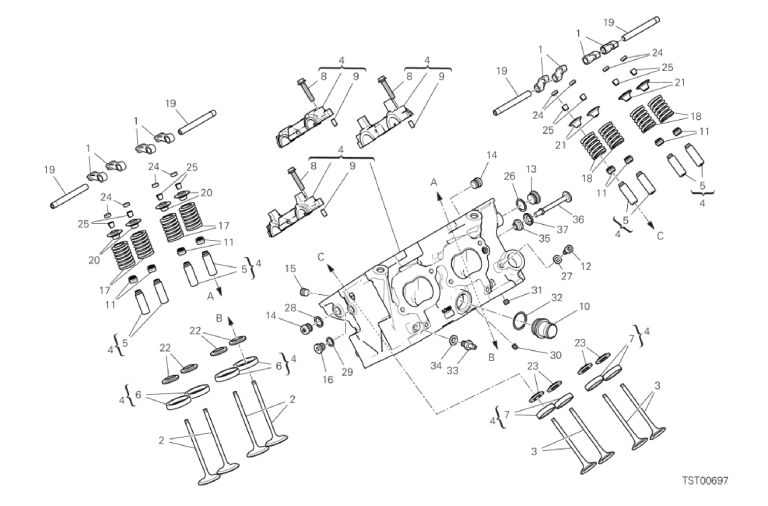

No.	Code	Name	Pos	Price

No.	Code	Name	pos	Price
1	20810521A	ARM	1	€ 94.05
2	21011221D	INTAKE VALVE	2	€ 41.16
3	21111222B	EXHAUST VALVE	3	€ 41.16
4	30125434DR	REAR HEAD	4	€ 2937.63
5	303A0841B	VALVE GUIDE	5	€ 6.30
6	304A1131A	SEAT, INTAKE VALVE	6	€ 14.11
7	304A1141A	SEAT, EXHAUST VALVE	7	€ 14.11
8	77253350Z	SCREW	8	€ 0.93
9	86050061A	PIN M5X10	9	€ 1.96
10	66810591A	FILLER	10	€ 7.75
11	76440091B	SEAL VALVE STEM	11	€ 2.99
12	77150624B	SCREW	12	€ 0.93
13	77913541A	THREADED PLUG M15X1	13	€ 14.18
14	77913611A	THREADED PLUG	14	€ 16.94
15	78011262A	PLUG	15	€ 1.96
16	78050011B	THREADED PLUG	16	€ 1.96
17	79810071A	SPRING	17	€ 4.02
18	79810081A	SPRING	18	€ 2.99
19	82115561A	SHAFT, OPENING ROCKER	19	€ 5.73
20	83810011A	PLATE UPPER	20	€ 5.88
21	83810021A	PLATE UPPER	21	€ 5.88
22	83910051A	PLATE LOWER	22	€ 5.06
23	83910071A	PLATE LOWER	23	€ 13.24
24	84012021AQ	ADJUSTER, OPENING ROCKER ARM 2.65 MM	24	€ 9.41
24	84012021AO	ADJUSTER, OPENING ROCKER ARM 2.55 MM	24	€ 9.41
24	84012021AP	ADJUSTER, OPENING ROCKER ARM 2.60 MM	24	€ 9.41
24	84012021AM	ADJUSTER, OPENING ROCKER ARM 2.45 MM	24	€ 9.41
24	84012021AN	ADJUSTER, OPENING ROCKER ARM 2.50 MM	24	€ 9.41
24	84012021AK	ADJUSTER, OPENING ROCKER ARM 2.35 MM	24	€ 9.41
24	84012021AL	ADJUSTER, OPENING ROCKER ARM 2.40 MM	24	€ 9.41
24	84012021AJ	ADJUSTER, OPENING ROCKER ARM 2.30 MM	24	€ 9.41
24	84012021AI	ADJUSTER, OPENING ROCKER ARM 2.25 MM	24	€ 9.41
24	84012021AH	ADJUSTER, OPENING ROCKER ARM 2.20 MM	24	€ 9.41
24	84012021AD	ADJUSTER, OPENING ROCKER ARM 2.00 MM	24	€ 9.41
24	84012021AE	ADJUSTER, OPENING ROCKER ARM 2.05 MM	24	€ 9.41
24	84012021AB	ADJUSTER, OPENING ROCKER ARM 1.90 MM	24	€ 9.41
24	84012021AC	ADJUSTER, OPENING ROCKER ARM 1.95 MM	24	€ 9.41
24	84012021AA	ADJUSTER, OPENING ROCKER ARM 1.85 MM	24	€ 9.41
24	84012021AF	ADJUSTER, OPENING ROCKER ARM 2.10 MM	24	€ 9.41
24	84012021AG	ADJUSTER, OPENING ROCKER ARM 2.15 MM	24	€ 9.41
25	84540081A	VALVE COLLET PAIR	25	€ 1.90
26	85211201A	ALUMINIUM GASKET	26	€ 1.96
27	85240261A	WASHER	27	€ 0.93
28	85241831A	WASHER	28	€ 1.96
29	85250241A	COPPER GASKET 11.9X8.2X2	29	€ 0.93
30	86010061A	PIN	30	€ 2.99
31	86010151A	PIN	31	€ 2.99
32	88642721A	O-RING	32	€ 0.93
33	81416941A	UNION	33	€ 5.29
34	85212971A	COPPER GASKET	34	€ 0.93
35	76412121A	VIBRATION DAMPER PAD	35	€ 1.96
36	7791B491A	SCREW, SPECIAL	36	€ 2.99
37	85611551A	WASHER	37	€ 1.96

Add to basket
20810521A	ARM	€ 94.05

Add to basket
21011221D	INTAKE VALVE	€ 41.16

Add to basket
21111222B	EXHAUST VALVE	€ 41.16

Add to basket
30125434DR	REAR HEAD	€ 2937.63

Add to basket
303A0841B	VALVE GUIDE	€ 6.30

Add to basket
304A1131A	SEAT, INTAKE VALVE	€ 14.11

Add to basket
304A1141A	SEAT, EXHAUST VALVE	€ 14.11

Add to basket
77253350Z	SCREW	€ 0.93

Add to basket
86050061A	PIN M5X10	€ 1.96

Add to basket
66810591A	FILLER	€ 7.75

Add to basket
76440091B	SEAL VALVE STEM	€ 2.99

Add to basket
77150624B	SCREW	€ 0.93

Add to basket
77913541A	THREADED PLUG M15X1	€ 14.18

Add to basket
77913611A	THREADED PLUG	€ 16.94

Add to basket
78011262A	PLUG	€ 1.96

Add to basket
78050011B	THREADED PLUG	€ 1.96

Add to basket
79810071A	SPRING	€ 4.02

Add to basket
79810081A	SPRING	€ 2.99

Add to basket
82115561A	SHAFT, OPENING ROCKER	€ 5.73

Add to basket
83810011A	PLATE UPPER	€ 5.88

Add to basket
83810021A	PLATE UPPER	€ 5.88

Add to basket
83910051A	PLATE LOWER	€ 5.06

Add to basket
83910071A	PLATE LOWER	€ 13.24

Add to basket
84012021AQ	ADJUSTER, OPENING ROCKER ARM 2.65 MM	€ 9.41
84012021AO	ADJUSTER, OPENING ROCKER ARM 2.55 MM	€ 9.41
84012021AP	ADJUSTER, OPENING ROCKER ARM 2.60 MM	€ 9.41
84012021AM	ADJUSTER, OPENING ROCKER ARM 2.45 MM	€ 9.41
84012021AN	ADJUSTER, OPENING ROCKER ARM 2.50 MM	€ 9.41
84012021AK	ADJUSTER, OPENING ROCKER ARM 2.35 MM	€ 9.41
84012021AL	ADJUSTER, OPENING ROCKER ARM 2.40 MM	€ 9.41
84012021AJ	ADJUSTER, OPENING ROCKER ARM 2.30 MM	€ 9.41
84012021AI	ADJUSTER, OPENING ROCKER ARM 2.25 MM	€ 9.41
84012021AH	ADJUSTER, OPENING ROCKER ARM 2.20 MM	€ 9.41
84012021AD	ADJUSTER, OPENING ROCKER ARM 2.00 MM	€ 9.41
84012021AE	ADJUSTER, OPENING ROCKER ARM 2.05 MM	€ 9.41
84012021AB	ADJUSTER, OPENING ROCKER ARM 1.90 MM	€ 9.41
84012021AC	ADJUSTER, OPENING ROCKER ARM 1.95 MM	€ 9.41
84012021AA	ADJUSTER, OPENING ROCKER ARM 1.85 MM	€ 9.41
84012021AF	ADJUSTER, OPENING ROCKER ARM 2.10 MM	€ 9.41
84012021AG	ADJUSTER, OPENING ROCKER ARM 2.15 MM	€ 9.41

Add to basket
84540081A	VALVE COLLET PAIR	€ 1.90

Add to basket
85211201A	ALUMINIUM GASKET	€ 1.96

Add to basket
85240261A	WASHER	€ 0.93

Add to basket
85241831A	WASHER	€ 1.96

Add to basket
85250241A	WASHER 10X14X1	€ 0.93

Add to basket
86010061A	PIN	€ 2.99

Add to basket
86010151A	PIN	€ 2.99

Add to basket
88642721A	O-RING	€ 0.93

Add to basket
81416941A	SHAPED UNION	€ 5.29

Add to basket
85212971A	COPPER GASKET	€ 0.93

Add to basket
76412121A	VIBRATION DAMPER PAD	€ 1.96

Add to basket
7791B491A	SCREW, SPECIAL	€ 2.99

Add to basket
85611551A	WASHER	€ 1.96
