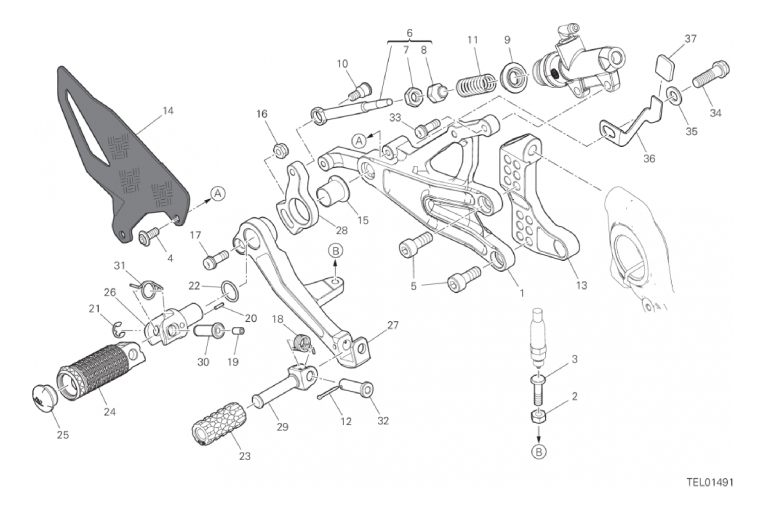

| 1 |
96211081AA
|
FRONT R.H. PLATE
|
1 |
€
200.89
|
|
|
| 2 |
74750031A
|
NUT 6MM
|
2 |
€
0.90
|
|
|
| 3 |
77912371B
|
SCREW
|
3 |
€
2.90
|
|
|
| 4 |
77244173B
|
SCREW
|
4 |
€
0.90
|
|
|
| 5 |
97611181A
|
SCREW, SPECIAL M8
|
5 |
€
5.92
|
|
|
| 6 |
96221241A
|
PIN REAR BRAKE PUMP
|
6 |
€
27.19
|
|
|
| 7 |
74750071A
|
NUT
|
7 |
€
0.90
|
|
|
| 8 |
97611101A
|
NUT M8
|
8 |
€
11.82
|
|
|
| 9 |
97611081A
|
BUSH PIN
|
9 |
€
7.09
|
|
|
| 10 |
82113811AA
|
PIN
|
10 |
€
5.84
|
|
|
| 11 |
97611091A
|
SPRING, RETURN FRENO POSTERIORE
|
11 |
€
2.90
|
|
|
| 12 |
68540071A
|
COTTER PIN
|
12 |
€
0.90
|
|
|
| 13 |
96211071AA
|
BRACKET FRONT RIGHT FOOTREST
|
13 |
€
70.90
|
|
|
| 14 |
24716431AA
|
HEEL GUARD FRONT RH CARBON
|
14 |
€
70.90
|
|
|
| 15 |
71240261A
|
BUSH WITH COLLAR
|
15 |
€
12.13
|
|
|
| 16 |
74940041A
|
NUT, SELF-LOCKING M6
|
16 |
€
0.90
|
|
|
| 17 |
77156668B
|
SCREW TCEIF M6X18
|
17 |
€
1.90
|
|
|
| 18 |
96211271A
|
SPRING, RETURN PEDAL, BRAKE
|
18 |
€
1.90
|
|
|
| 19 |
77850381A
|
SCREW M5X10 FOOTREST PIN
|
19 |
€
0.90
|
|
|
| 20 |
86050041A
|
PIN
|
20 |
€
0.90
|
|
|
| 21 |
88450821A
|
SPRING RING
|
21 |
€
0.90
|
|
|
| 22 |
88640371A
|
O-RING 14X1.78
|
22 |
€
0.90
|
|
|
| 23 |
96210521A
|
COVER PEDAL
|
23 |
€
2.90
|
|
|
| 24 |
96211101AA
|
RIGHT FOOTREST
|
24 |
€
47.27
|
|
|
| 25 |
96211111A
|
LEFT PROTECTION PLATE
|
25 |
€
4.90
|
|
|
| 26 |
96211121AA
|
JOINT LEFT FOOTREST
|
26 |
€
28.36
|
|
|
| 27 |
96212181AA
|
BRAKE LEVER ASSEMBLY
|
27 |
€
140.64
|
|
|
| 28 |
96211141AA
|
SMALL LINK BRAKE LEVER ASSEMBLY
|
28 |
€
64.99
|
|
|
| 29 |
96211151AA
|
PEDAL, BRAKE BRAKE LEVER ASSEMBLY
|
29 |
€
17.73
|
|
|
| 30 |
96211201A
|
FOOTREST PIN
|
30 |
€
8.28
|
|
|
| 31 |
96211211A
|
SPRING, RETURN LEFT FOOTREST
|
31 |
€
3.90
|
|
|
| 32 |
96211261A
|
SHAFT, BRAKE
|
32 |
€
13.01
|
|
|
| 33 |
77156658B
|
SCREW TCEIF M6X16
|
33 |
€
1.90
|
|
|
| 34 |
77157258B
|
SCREW M8X25
|
34 |
€
1.90
|
|
|
| 35 |
85212271A
|
WASHER
|
35 |
€
0.90
|
|
|
| 36 |
97611131AA
|
RIGHT BRACKET
|
36 |
€
21.28
|
|
|
| 36 |
97611121AA
|
RIGHT BRACKET MEDIA
|
36 |
€
17.73
|
|
|
| 36 |
97611111AA
|
RIGHT BRACKET ALTA
|
36 |
€
17.73
|
|
|
| 37 |
76414381A
|
RUBBER PAD
|
37 |
€
3.90
|
|
|
