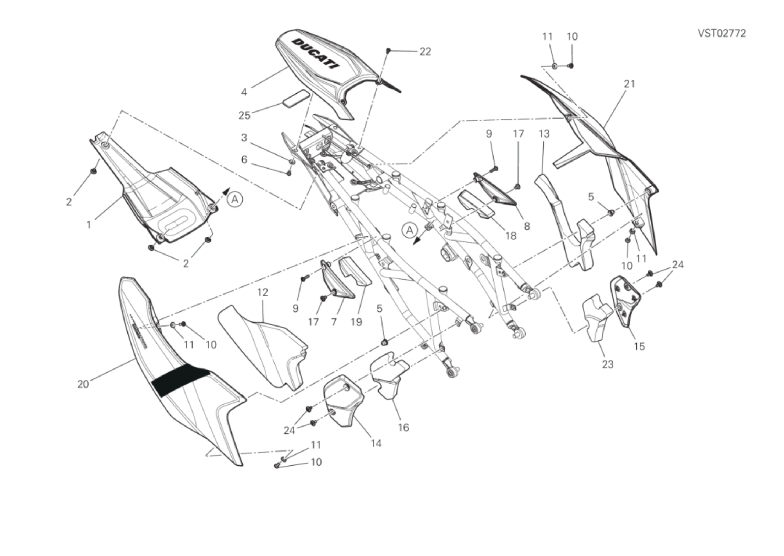

| 1 |
48217191A
|
UNDER-TAIL COVER
|
1 |
€
10.51
|
|
|
| 2 |
77211251A
|
SCREW
|
2 |
€
4.02
|
|
|
| 3 |
85240171A
|
WASHER 10.5X18X1.6
|
3 |
€
0.93
|
|
|
| 4 |
48217141AA
|
TAIL
|
4 |
€
91.67
|
|
|
| 5 |
85044431A
|
RUBBER PAD
|
5 |
€
1.96
|
|
|
| 6 |
77440171A
|
SCREW
|
6 |
€
1.96
|
|
|
| 7 |
48217261A
|
RH SUBFRAME CLOSING
|
7 |
€
6.30
|
|
|
| 8 |
48217271A
|
LH SUBFRAME CLOSING
|
8 |
€
6.30
|
|
|
| 9 |
77244173B
|
SCREW
|
9 |
€
0.93
|
|
|
| 10 |
77244183B
|
SCREW BLACK
|
10 |
€
5.05
|
|
|
| 11 |
71611441B
|
SPACER
|
11 |
€
2.99
|
|
|
| 12 |
48613161A
|
DAMPER, SOUND ARRESTER COVER , FRAME RH
|
12 |
€
15.76
|
|
|
| 13 |
48613171A
|
DAMPER, SOUND ARRESTER COVER , FRAME LH
|
13 |
€
15.76
|
|
|
| 14 |
48217241B
|
RH FRAME CLOSING
|
14 |
€
5.25
|
|
|
| 15 |
48217251B
|
LH FRAME CLOSING
|
15 |
€
5.25
|
|
|
| 16 |
48613152A
|
DAMPER, SOUND ARRESTER RH FRONT
|
16 |
€
7.35
|
|
|
| 17 |
77244303B
|
SCREW M6X10
|
17 |
€
0.93
|
|
|
| 18 |
48613121A
|
DAMPER, SOUND ARRESTER LH REAR
|
18 |
€
9.46
|
|
|
| 19 |
48613131A
|
DAMPER, SOUND ARRESTER RH REAR
|
19 |
€
9.46
|
|
|
| 20 |
48217121AA
|
COVER , FRAME RH
|
20 |
€
30.47
|
|
|
| 21 |
48217131AA
|
COVER , FRAME LH
|
21 |
€
30.47
|
|
|
| 22 |
77354713B
|
SCREW TCEIR M5X10 DIN6912 8.8
|
22 |
€
0.93
|
|
|
| 23 |
48613141B
|
DAMPER, SOUND ARRESTER ANTERIORE SINISTRO
|
23 |
€
7.35
|
|
|
| 24 |
77210841B
|
SCREW
|
24 |
€
2.99
|
|
|
| 25 |
86612101A
|
PAD
|
25 |
€
1.96
|
|
|
